  • Performance:
    Ultra-pure rapid heating of DI water and water based process chemicals. Applicable for point of use or recirculation systems. System is available as a fully integrated Temperature Control Unit.

  • Heater:

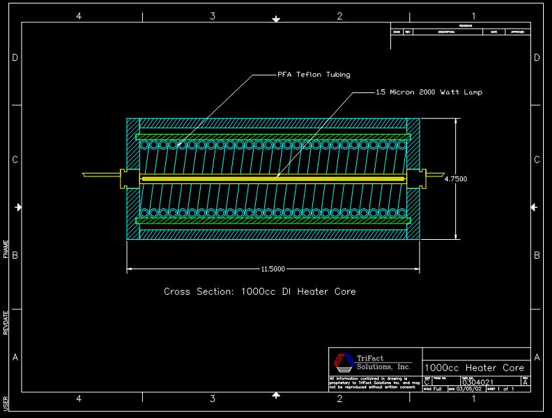

    Patented design utilizes infrared radiation heating technique. All wetted materials are Teflon PFA and PTFE. No coated metals or Quartz in heater core. This technique converts ~80% of the energy into liquid heat. Rapid heat up and cool down is not plagued by convection delays present in other systems.

  • Single Pass Flexibility:
    Single Pass Heating Provides an output temperature control of +/- 0.1 C when input flow and input temperature are constant.
    Temperature control of +/- 1 C in Start / Stop Flow mode provided the On cycle > 30 sec. and off cycle < 60 sec.
    Capability to provide Variable Flow Single Pass Heating. Heating energy is controlled via an algorithm based on input flow and temperature. Output is controlled to +/- 1 C provided input variables are within a specified range.

  • Recirculation Heating:

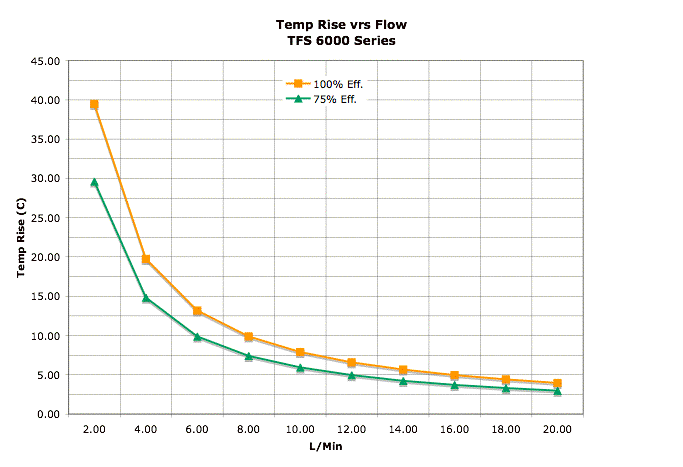

    Heated Tanks can be replaced by using this product in the recirculation loop. Heat up time and final temperature are dependent on temperature delta and flow rate.
    Heat up Time is typically1/3 that required for an equal wattage Heated Tank.
    TTFS-TC (Temperature Control Unit) provides built in temperature control to maintain an output of +/- 0.1 C a closed loop recirculation installation.

Technology Protected under Patent # 7015437
